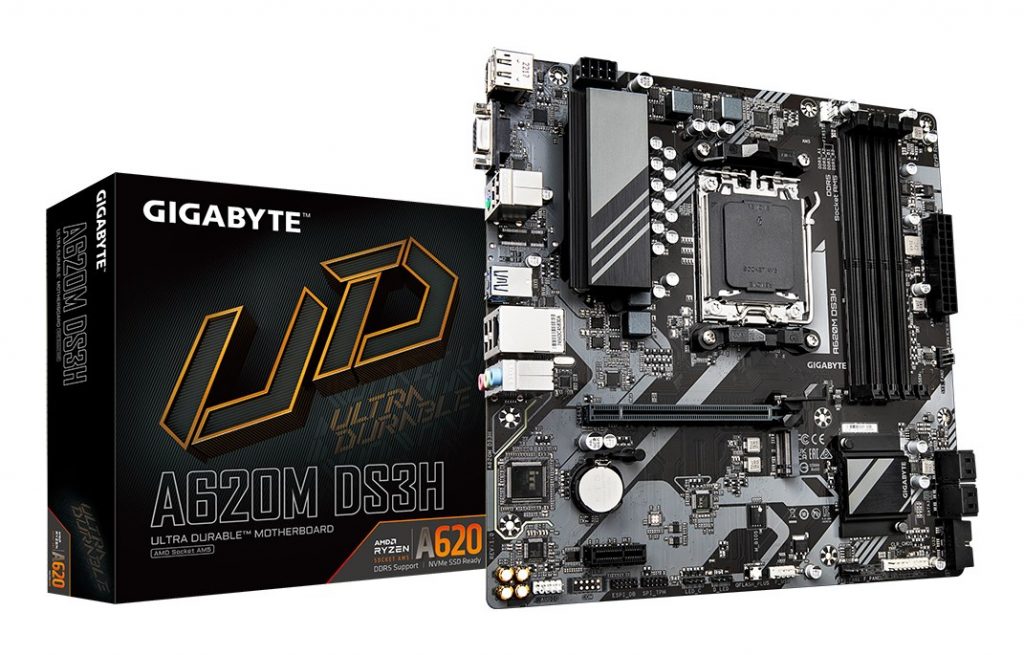

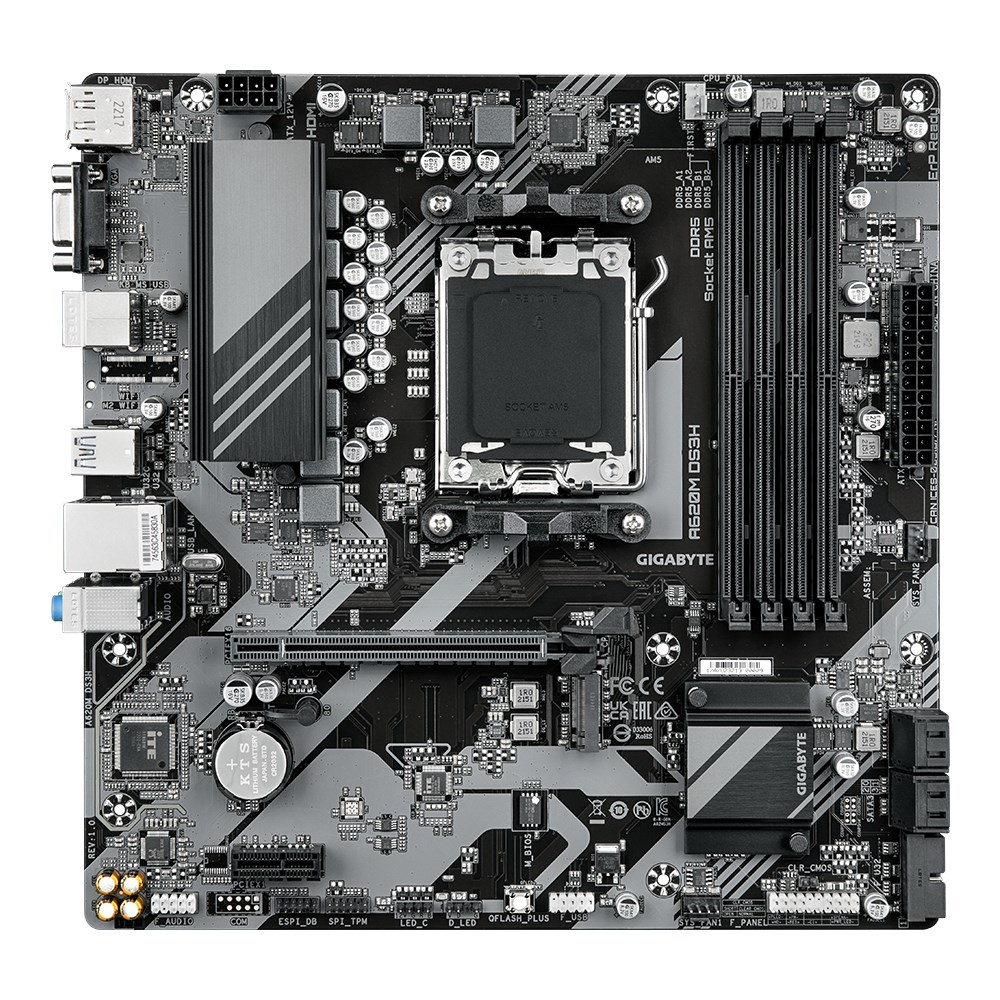

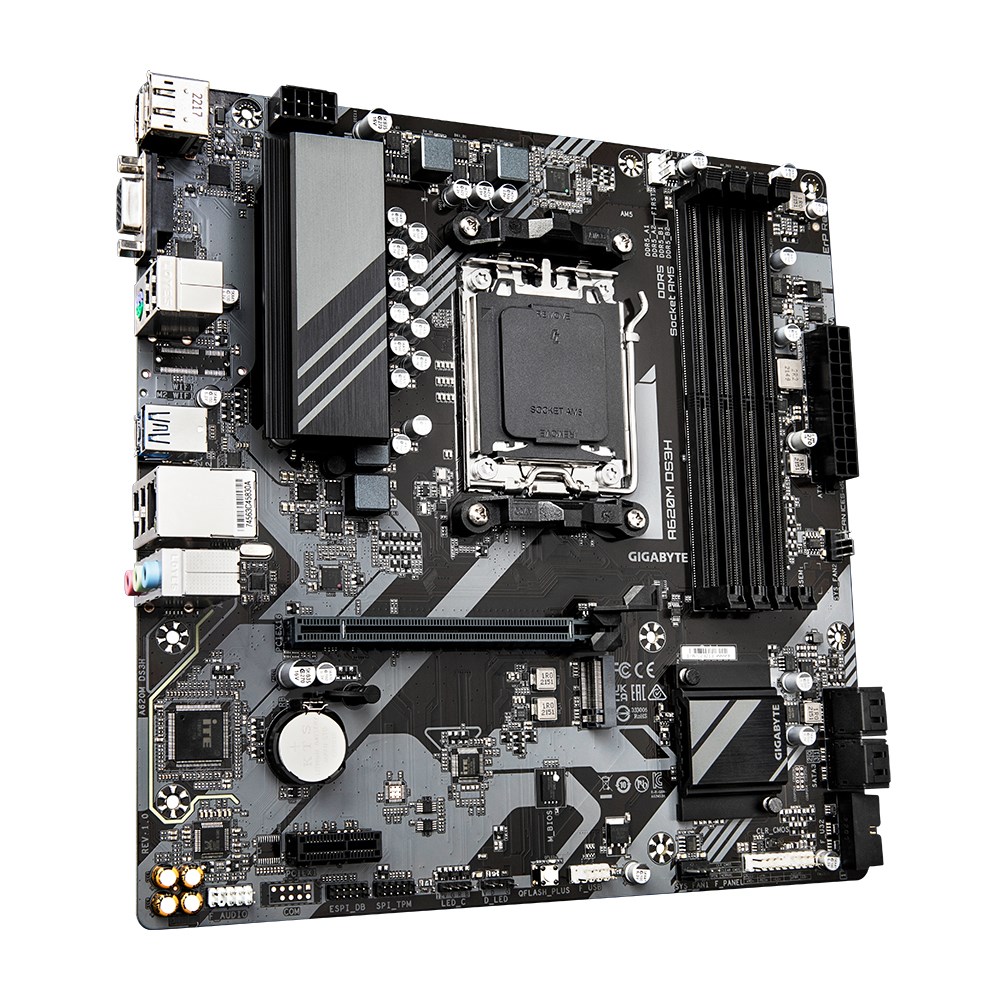

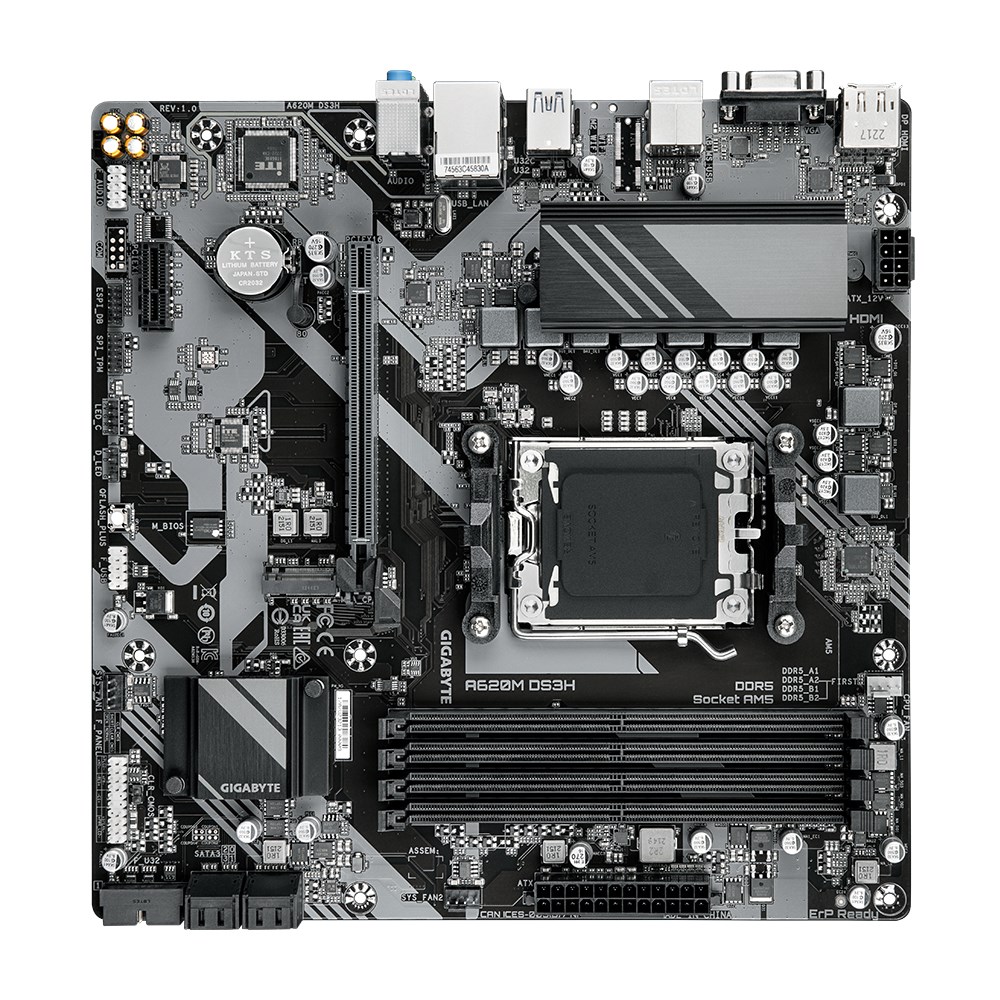

GIGABYTE A620M DS3H AMD Ryzen 8000, 5+2+2 VRM, DDR5 7600MHz OC, 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Pakendi sisu | Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Laienduspesad | PCI Express x16 slots

1

BIOS | Desktop Management Interface (DMI) version

2.7

Storage controllers | Supported storage drive interfaces

M.2, SATA III

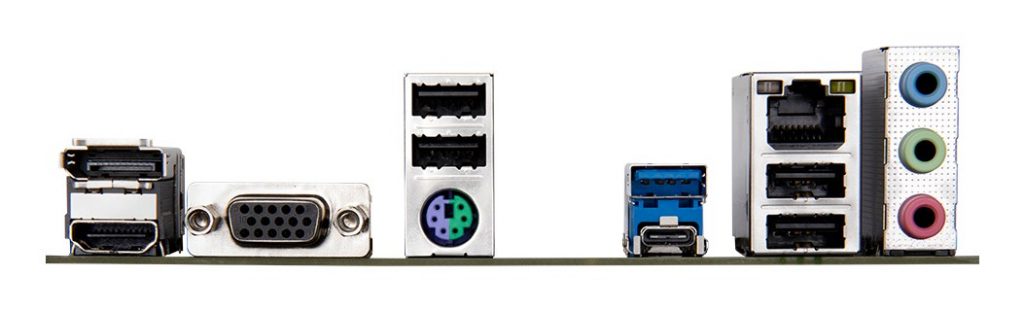

Rear panel I/O ports | Number of audio jack connectors

3

Võrk | Ethernet LAN data rates

100, 1000, 10

Rear panel I/O ports | USB connector type

USB Type-C, USB Type-A

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Omadused | Motherboard chipset family

AMD

Tehnilised andmed | Warranty period

3 year(s)

Aku | Number of battery cells

1

Storage controllers | RAID levels

1, 10, 0

Storage controllers | Number of storage drives supported

4

Sisemine I/O | ATX Power connector (24-pin)

Jah

Storage controllers | RAID support

Jah

Sisemine I/O | Front panel connector

Jah

Graafika | HDCP

Jah

Omadused | Audio output channels

7.1 channels

Omadused | Windows operating systems supported

Windows 10 x64, Windows 11 x64

Sisemine I/O | TPM connector

Jah

Sisemine I/O | Total number of SATA connectors

4

Sisemine I/O | EPS power connector (8-pin)

Jah

Mälu | Supported memory clock speeds

6200, 6000, 6800, 5200, 6400, 7600, 4800, 7000, 5600 MHz, 7200, 6600

Storage controllers | Supported storage drive types

HDD & SSD

Omadused | Motherboard chipset

AMD A620

Võrk | Ethernet LAN

Jah

Rear panel I/O ports | DisplayPortide arv

1

Rear panel I/O ports | HDMI version

2.1

Omadused | Motherboard form factor

micro ATX

Mälu | Supported memory clock speed (max)

7600 MHz

Protsessor | Compatible processor series

AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Võrk | Ethernet interface type

Gigabit Ethernet

Protsessor | Maximum internal memory supported by processor

256 GB

Graafika | HDCP version

2.3

Kaal ja mõõtmed | Sügavus

174 mm

Laienduspesad | PCI Express x1 slots

1

Sisemine I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Mälu | Memory slots type

DIMM

Laienduspesad | Number of M.2 (M) slots

1

Protsessor | Supported processor sockets

Socket AM5

Aku | Battery type

CR2032

BIOS | Clear CMOS jumper

Jah

Sisemine I/O | CPU fan connector

Jah

Sisemine I/O | Front panel audio connector

Jah

Protsessor | Protsessori tootja

AMD

Mälu | Unbuffered memory

Jah

Mälu | Supported memory types

DDR5-SDRAM

Protsessor | Processor socket

Socket AM5

Sisemine I/O | USB 2.0 connectors

1

Omadused | PC health monitoring

Voltage, Fan, Temperature

Sisemine I/O | RGB LED pin header

Jah

Mälu | Maximum internal memory

256 GB

Kaal ja mõõtmed | Laius

244 mm

Rear panel I/O ports | PS/2 ports quantity

1

Mälu | Memory channels

Kahekanaliline

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Aku | Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Rear panel I/O ports | HDMI-portide arv

1

Sisemine I/O | 12V power connector

Jah

Aku | Battery weight

3 g

Rear panel I/O ports | USB 2.0 ports quantity

4

Rear panel I/O ports | Ethernet LAN (RJ-45) portide arv

1

BIOS | BIOS type

UEFI AMI

Sisemine I/O | Number of SATA III connectors

4

Rear panel I/O ports | DisplayPort version

1.4

Rear panel I/O ports | Headphone outputs

3

Rear panel I/O ports | VGA (D-Sub) ports quantity

1

Mälu | Number of memory slots

4

Aku | Lithium weight per battery

0.07 g

Mälu | ECC сompatibility

Non-ECC
