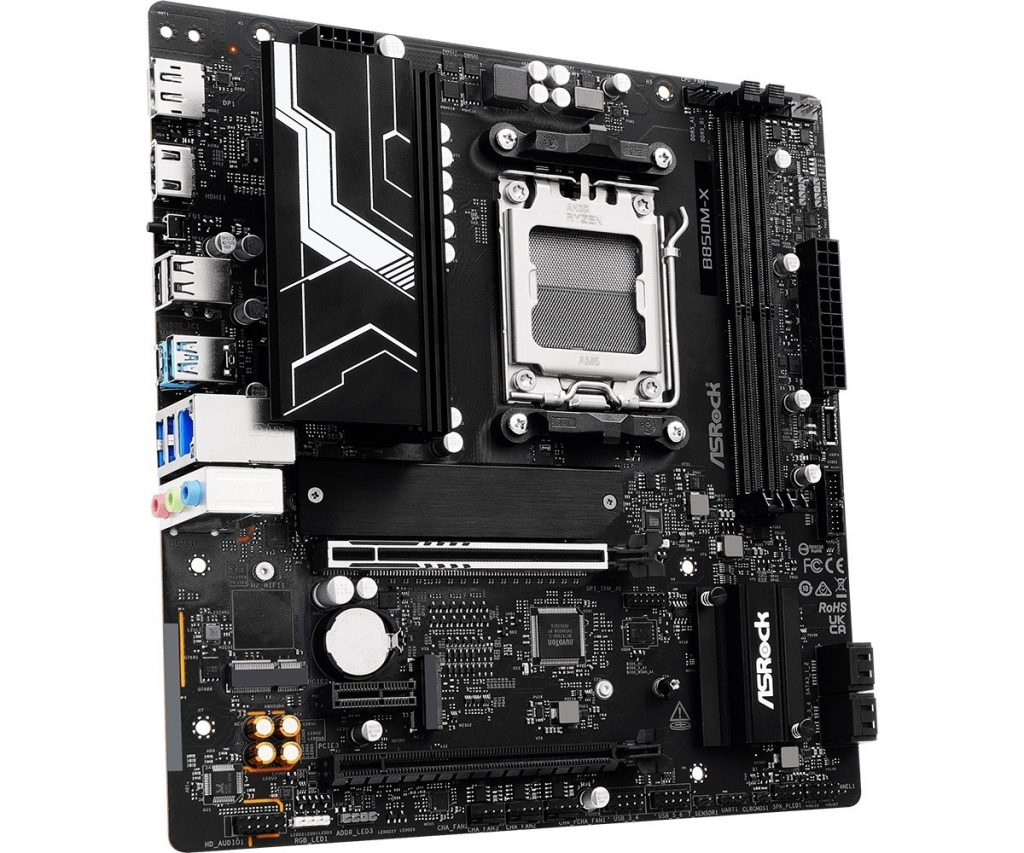

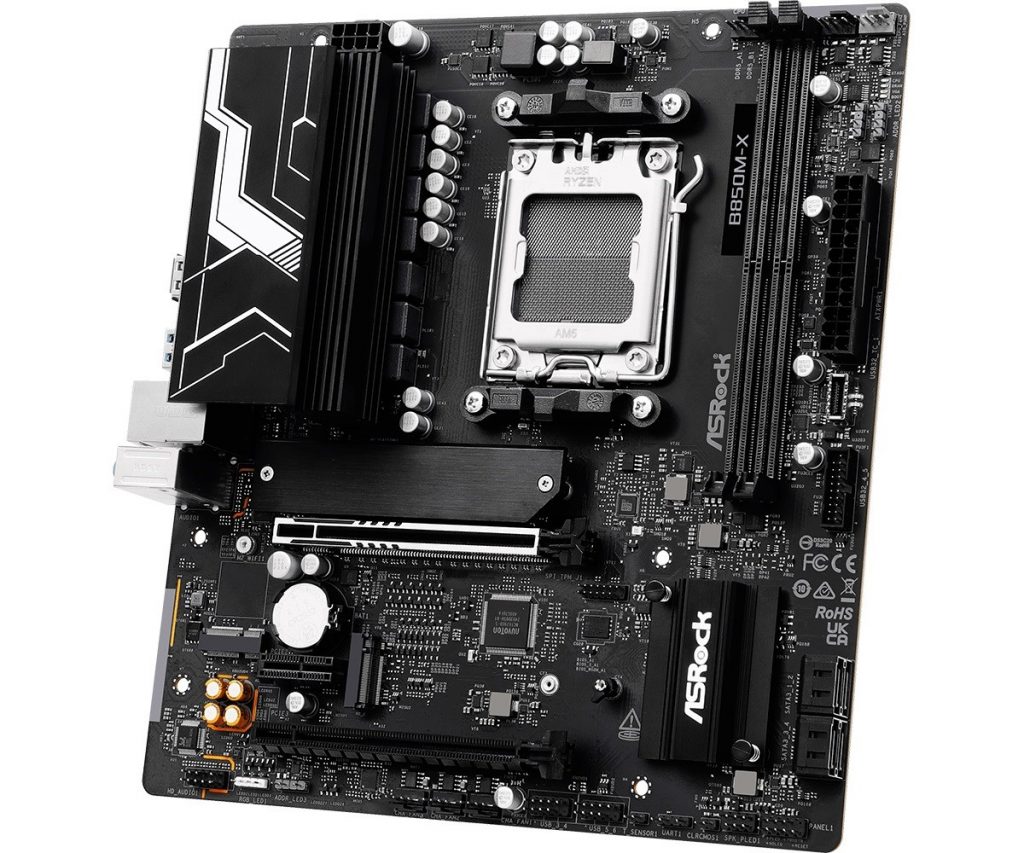

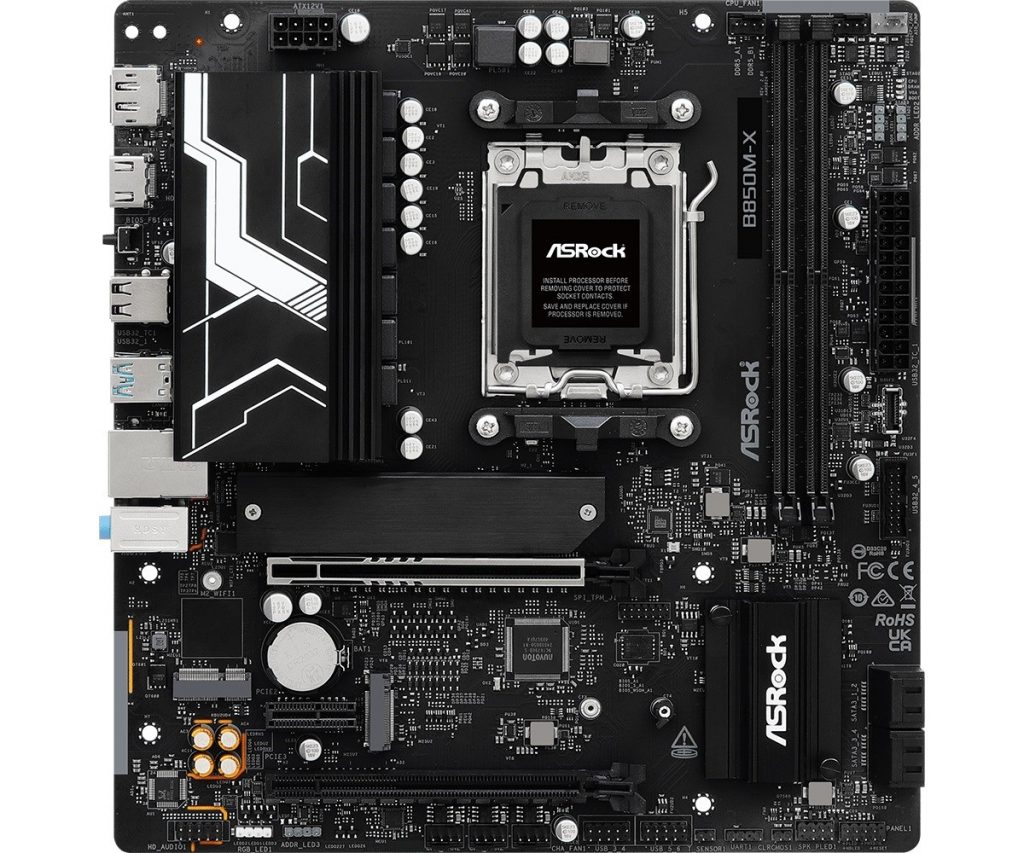

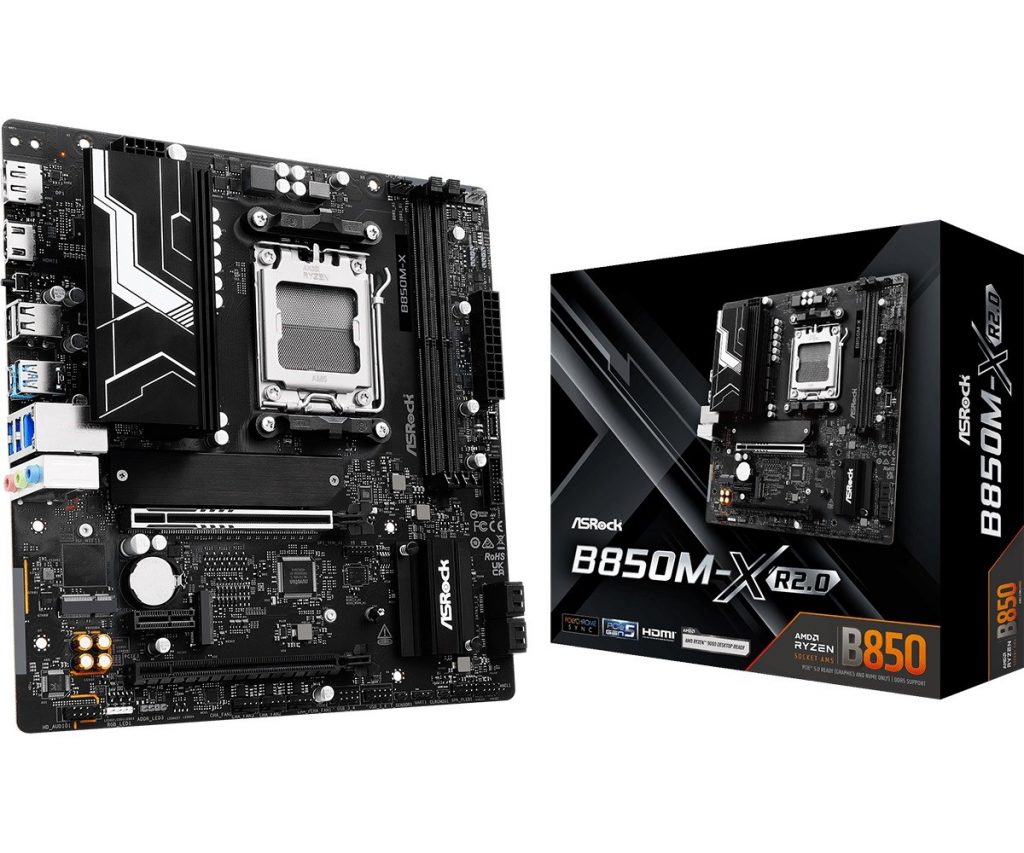

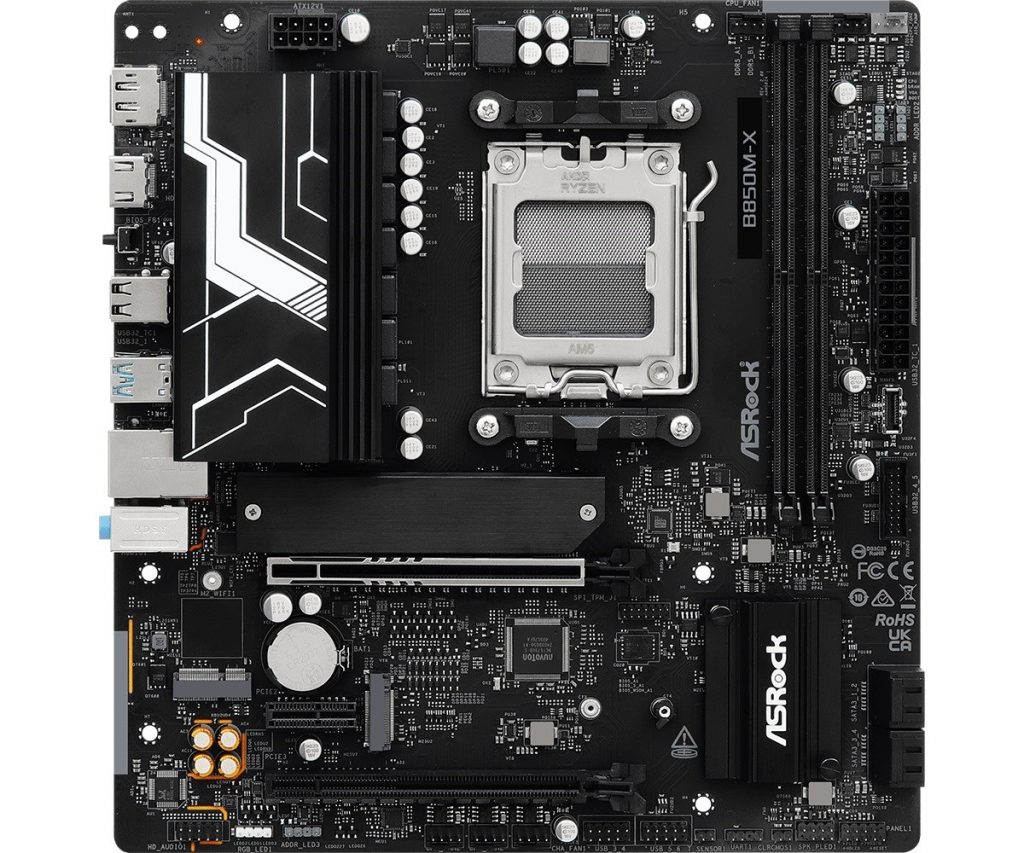

Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX

Omadused | Certification

FCC, CE, ErP/EuP

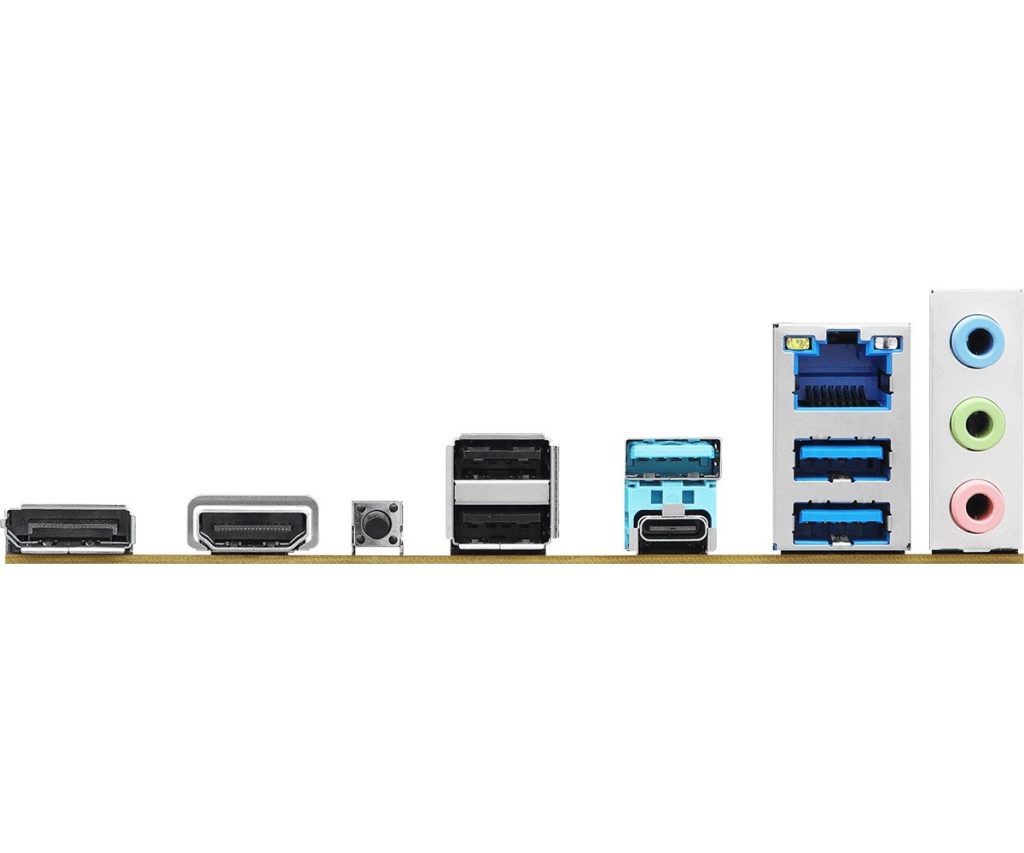

Rear panel I/O ports | DisplayPort version

1.4

Storage controllers | Supported storage drive types

HDD & SSD

Rear panel I/O ports | USB 2.0 ports quantity

2

Omadused | Toote värv

Must

Sisemine I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Omadused | Audio output channels

7.1 channels

Sisemine I/O | Front panel audio connector

Jah

Omadused | Audio chip

Realtek ALC897

Laienduspesad | Number of M.2 (M) slots

2

Graafika | HDCP

Jah

Storage controllers | Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Graafika | Maximum resolution

3840 x 2160 pixels

Rear panel I/O ports | DisplayPortide arv

1

Storage controllers | RAID support

Jah

Sisemine I/O | ATX Power connector (24-pin)

Jah

Omadused | Motherboard form factor

micro ATX

Graafika | Parallel processing technology support

Ei toetata

Storage controllers | RAID levels

10, 1, 0

Omadused | Motherboard chipset family

AMD

Võrk | LAN controller

Dragon RTL8125BG

Sisemine I/O | CPU fan connector

Jah

Omadused | Motherboard chipset

AMD B850

BIOS | BIOS type

UEFI AMI

Mälu | Maximum internal memory

128 GB

Sisemine I/O | USB 2.0 connectors

2

Sisemine I/O | Number of SATA III connectors

4

Rear panel I/O ports | Ethernet LAN (RJ-45) portide arv

1

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Kaal ja mõõtmed | Laius

244 mm

Rear panel I/O ports | Line-in

Jah

Rear panel I/O ports | HDMI-portide arv

1

Sisemine I/O | RGB LED pin header

Jah

Sisemine I/O | USB Type-C ports quantity

1

Sisemine I/O | TPM connector

Jah

Rear panel I/O ports | Audio output

3.5 mm

Mälu | Memory slots type

DIMM

Mälu | Supported memory types

DDR5-SDRAM

Rear panel I/O ports | Microphone in

Jah

Protsessor | Compatible processor series

AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Võrk | Mobile network connection

Ei

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Laienduspesad | Number of M.2 (E) slots

1

Mälu | Number of memory slots

2

Sisemine I/O | Number of chassis fan connectors

3

Võrk | Ethernet LAN

Jah

Rear panel I/O ports | HDMI version

2.1

Kaal ja mõõtmed | Sügavus

226 mm

Protsessor | Protsessori tootja

AMD

Mälu | ECC сompatibility

ECC & Non-ECC

Sisemine I/O | Number of EPS power connectors (8-pin)

1

Laienduspesad | 1st M.2 highest PCI Express generation

5.0

Võrk | Ethernet interface type

2.5 Gigabit Ethernet

Omadused | Windows operating systems supported

Windows 10 x64, Windows 11 x64

Laienduspesad | PCI Express x1 (Gen 4.x) slots

1

Sisemine I/O | EPS power connector (8-pin)

Jah

Mälu | Memory channels

Kahekanaliline

Pakendi sisu | Kaasasolevad kaablid

SATA

Pakendi sisu | Screws included

Jah

Laienduspesad | 2nd M.2 largest key size

2280

Protsessor | Processor socket

Socket AM5

Protsessor | Supported processor sockets

Socket AM5

Sisemine I/O | 12V power connector

Jah

Laienduspesad | PCI Express x16 (Gen 5.x) slots

1

Sisemine I/O | Number of CPU fan connectors

2

Sisemine I/O | Number of RGB LED pin headers

1

Laienduspesad | PCI Express x16 (Gen 4.x) slots

1

Võrk | Wi-Fi

Ei

Laienduspesad | 2nd M.2 highest PCI Express generation

4.0

Ohutushoiatus | Hoiatused

Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.

Laienduspesad | 1st M.2 largest key size

2280
