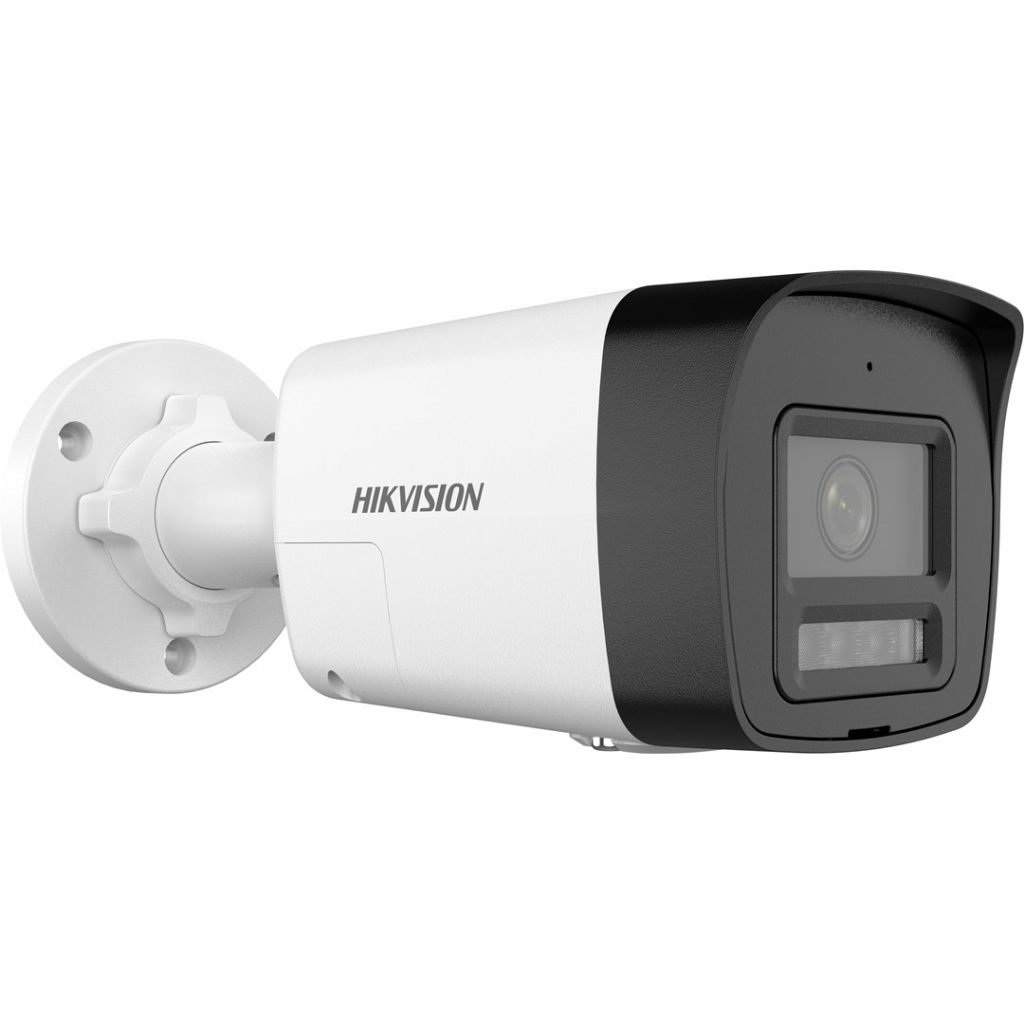

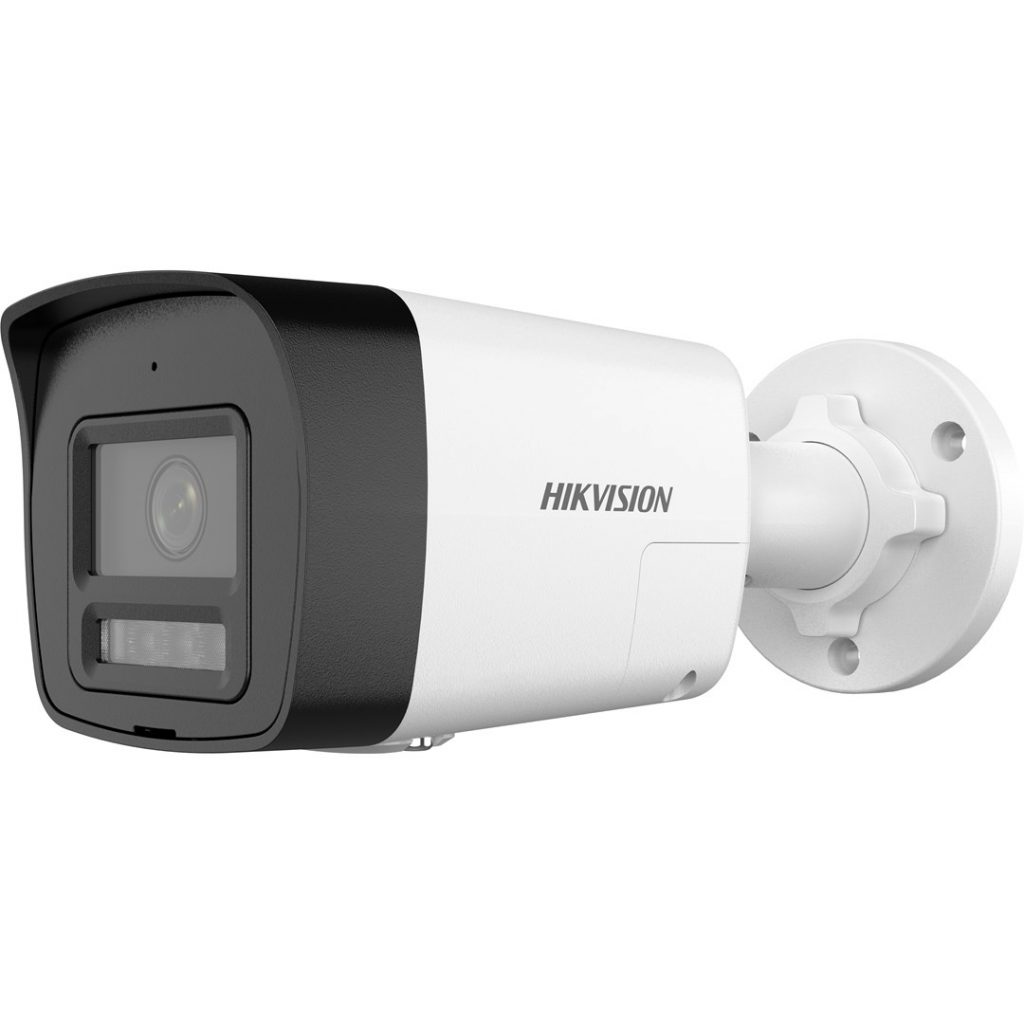

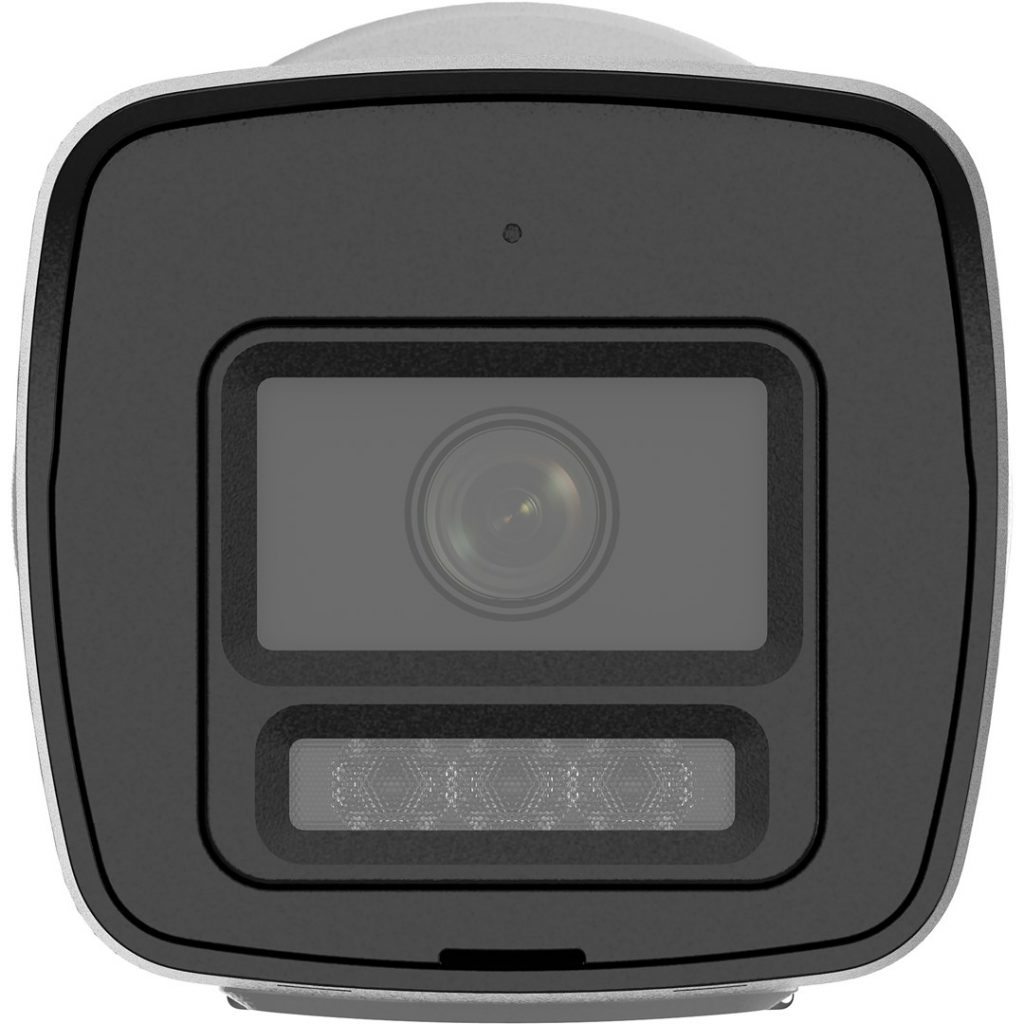

HIKVISION DS-2CD1043G2-LIUF/SL 2.8MM IP CAMERA

Performance | Certification

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Performance | Infrared (IR) cut-off filter

Yes

Design | Mounting type

Wall

Security | Video motion detection

Yes

Video | Privacy masking

Yes

Night vision | Infra-red wavelength

850 nm

Security | Mirror

Yes

Security | Heartbeat

Yes

Power | Power consumption (Power over Ethernet (PoE))

9 W

Safety warning | Warnings

Do not expose the device to moisture or extreme temperatures., The product must be disposed of properly in accordance with local regulations for the disposal of electronics., The appliance should be installed by a qualified professional.

Night vision | Night vision

Yes

Security | Password protection

Yes

Video | Supported graphics resolutions

1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 2560 x 1440, 640 x 480 (VGA), 640 x 360

Weight & dimensions | Width

179 mm

Packaging data | Package height

118 mm

Performance | Connectivity technology

Wired

Storage | Card reader integrated

Yes

Operational conditions | Operating relative humidity (H-H)

0 - 95%

Packaging data | Package width

216 mm

Network | Bluetooth

No

Video | Maximum resolution

2560 x 1440 pixels

Power | Power source type

DC, PoE

Performance | Type

IP security camera

Operational conditions | Storage relative humidity (H-H)

0 - 95%

Weight & dimensions | Weight

315 g

Packaging data | Package depth

121 mm

Network | Networking standards

IEEE 802.3af

Ports & interfaces | Ethernet LAN (RJ-45) ports

1

Operational conditions | Operating temperature (T-T)

-30 - 60 °C

Design | Product colour

White

Operational conditions | Storage temperature (T-T)

-30 - 60 °C

Camera | Tilt angle range

0 - 90°

Power | Power consumption (max)

7.5 W

Network | Quality of Service (QoS) support

Yes

Storage | Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Packaging data | Package weight

520 g

Weight & dimensions | Height

69.1 mm

Video | Highlight Compensation (HLC)

Yes

Network | Ethernet interface type

Fast Ethernet

Performance | Wide Dynamic Range (WDR)

120 dB

Night vision | Night vision distance

30 m

Camera | Camera shutter speed

1/3 - 1/100000 s

Video | Total megapixels

4 MP

Network | Ethernet LAN

Yes

Camera | Angle of rotation

360°

Packaging content | Number of cameras

1

Video | Bit rate

32 Kbps - 8 Mbps

Design | International Protection (IP) code

IP67

Weight & dimensions | Depth

67.4 mm

Network | Wi-Fi

No

Camera | Pan range

0 - 360°

Night vision | LED type

IR/White

Design | Housing material

Metal, Plastic

Power | DC output voltage

12

Video | Noise reduction

Yes

Image sensor | Progressive scan

Yes

Performance | Placement supported

Outdoor

Storage | Maximum memory card size

512 GB

Image sensor | Sensor type

CMOS

Image sensor | Optical sensor size

25.4 / 3 mm (1 / 3")

Network | Number of users

32 user(s)

Camera | Lens viewing angle, horizontal

98°

Power | DC output current

0.62 A

Lens system | Recognize distance (wide)

12 m

Lens system | Detect distance (wide)

63 m

Video | Video compression formats

H.265, H.265+, H.264, H.264+, M-JPEG

Video | Region of Interest (ROI) encoding

Yes

Lens system | Identify distance (wide)

6 m

Lens system | Maximum aperture number

1.6

Lens system | Observe distance (wide)

25 m

Performance | Day/night mode

Yes

Video | Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Camera | Lens viewing angle, vertical

54°

Camera | Lens viewing angle, diagonal

114°

Lens system | Fixed focal length

2.8 mm

Video | Frame rate

25 fps
