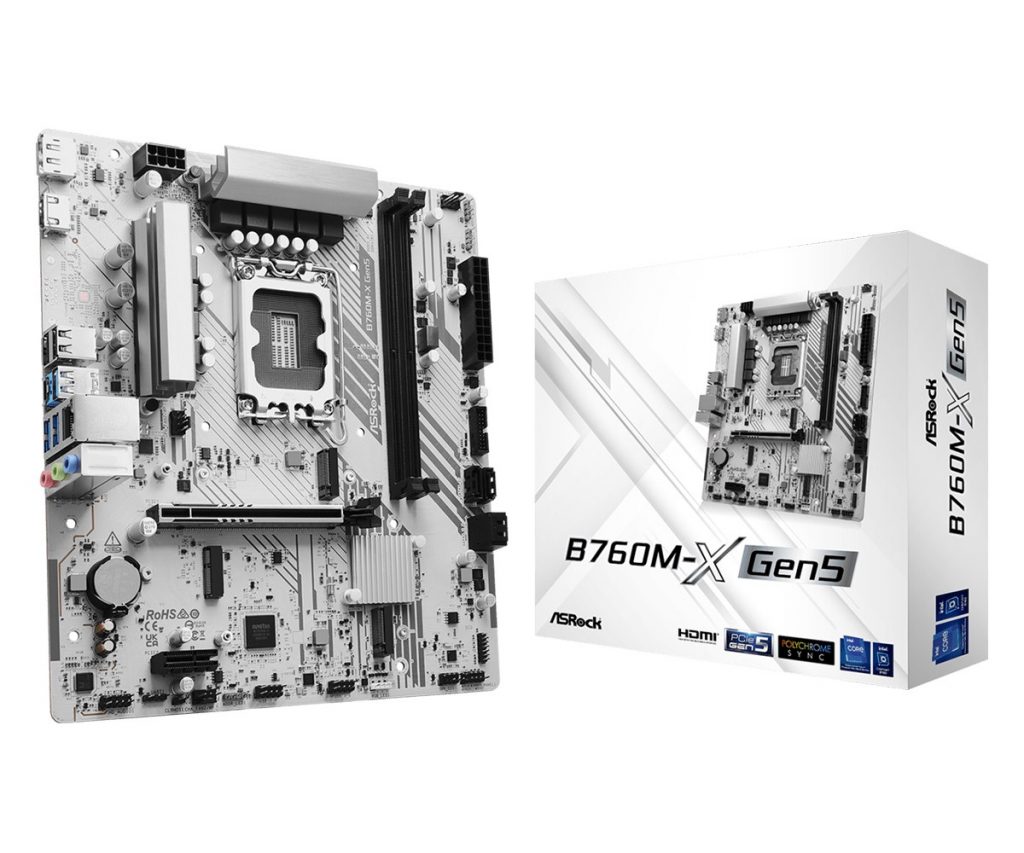

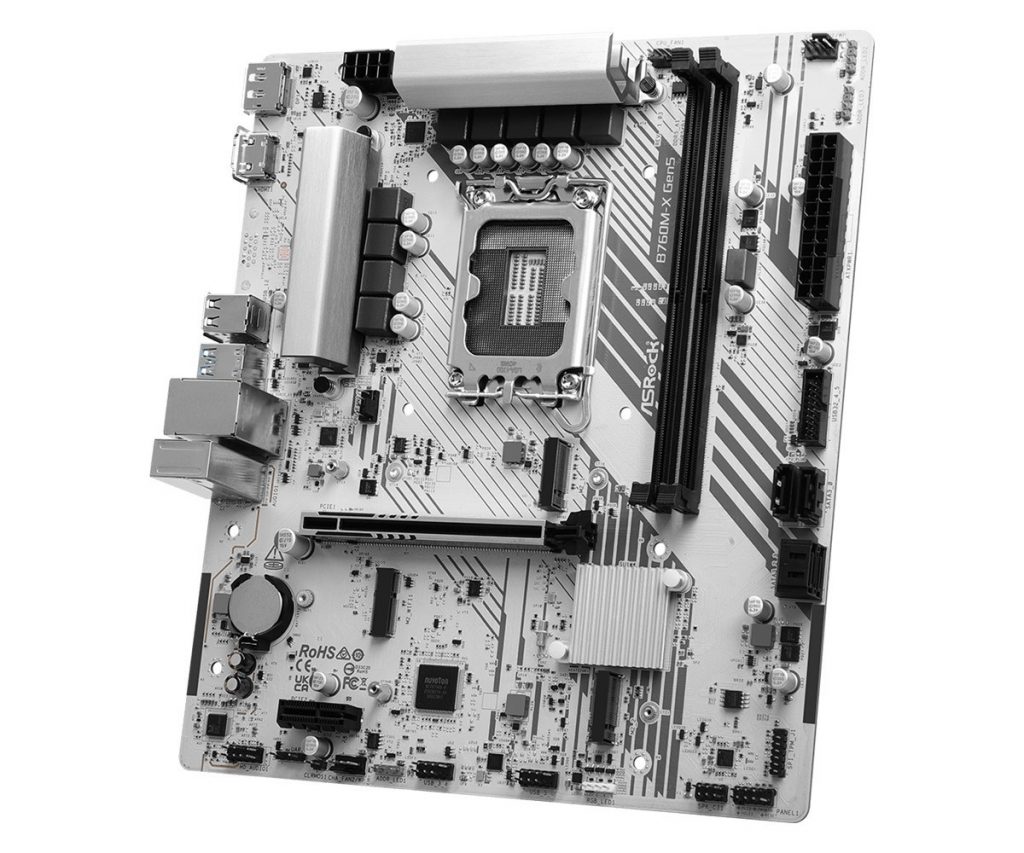

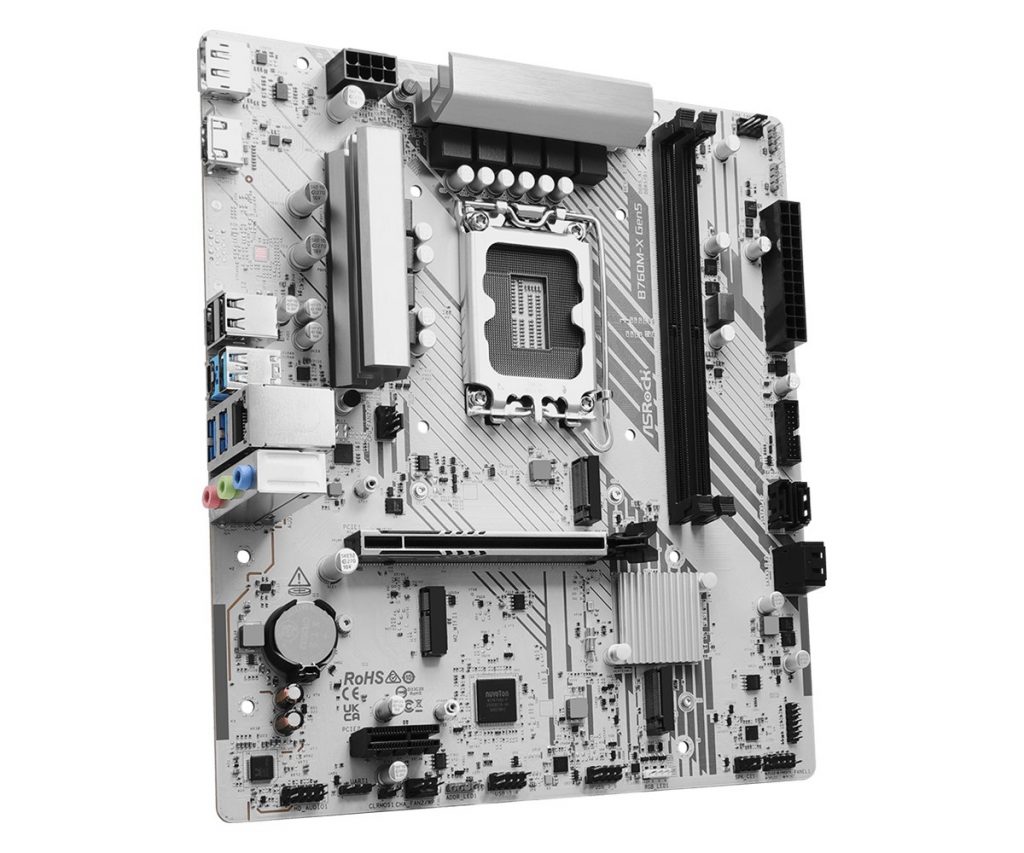

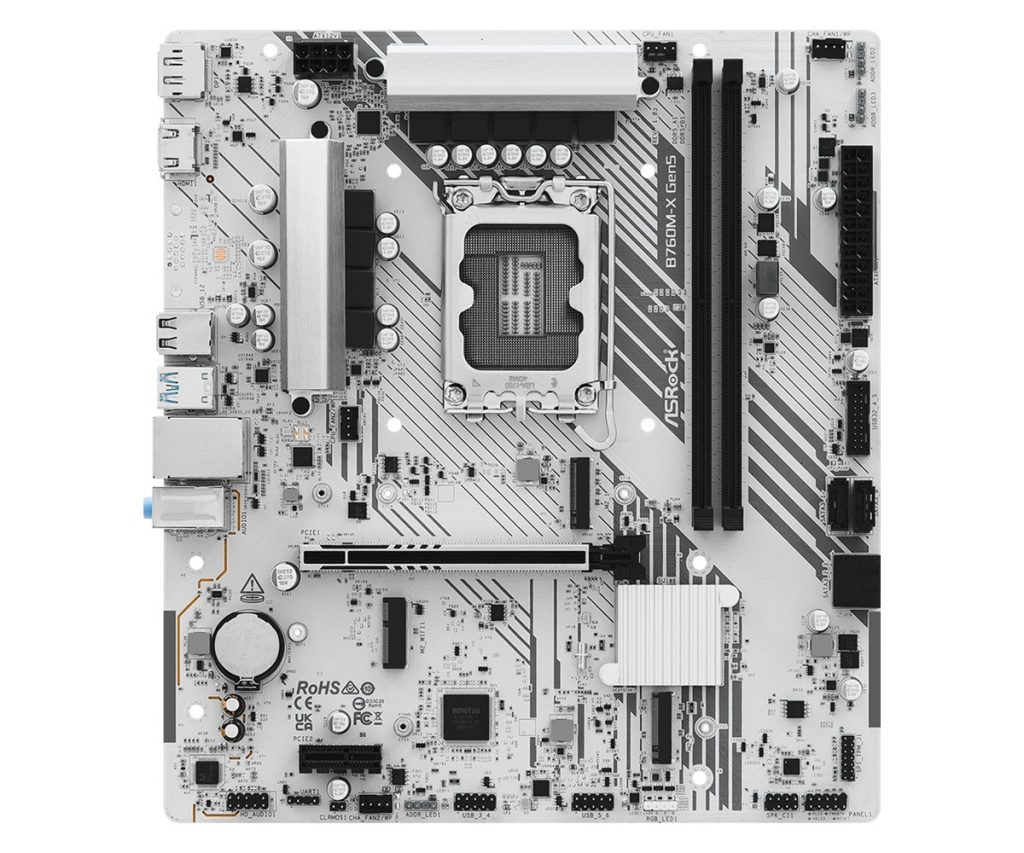

Asrock B760M-X Gen5 Intel B760 LGA 1700 micro ATX

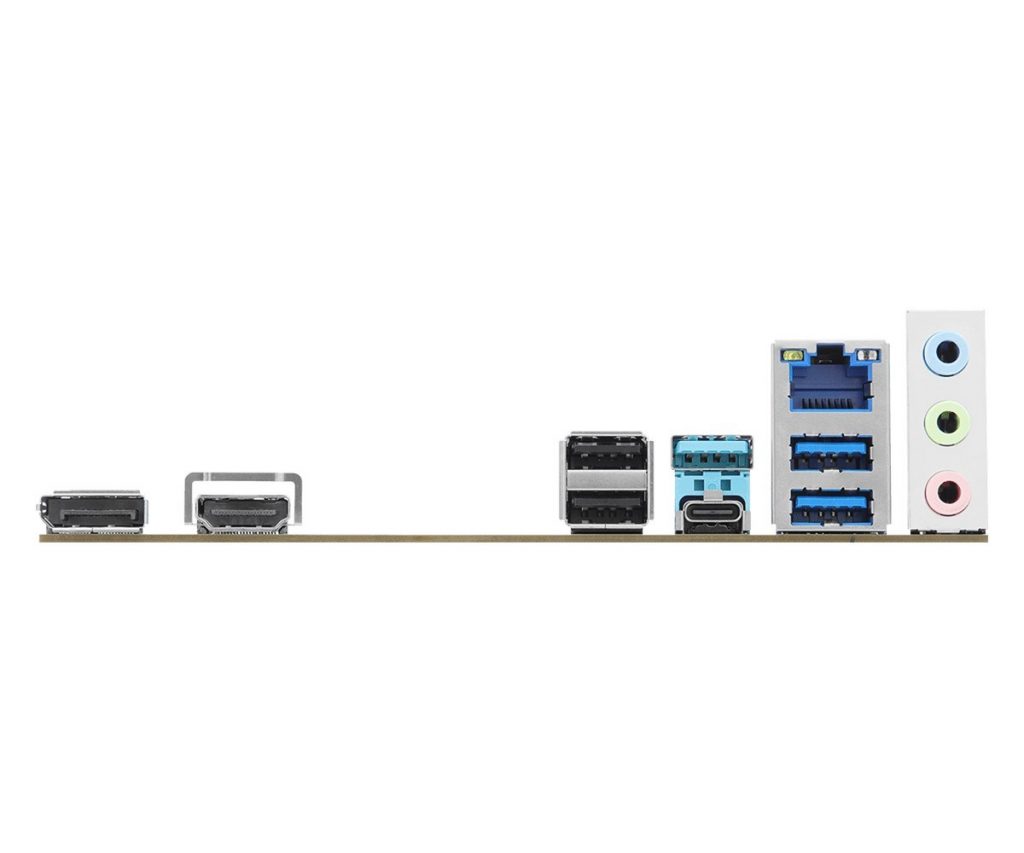

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Kaal ja mõõtmed | Laius

244 mm

Rear panel I/O ports | HDMI-portide arv

1

Protsessor | Protsessori tootja

Intel

Protsessor | Compatible processor series

Intel Core i3 12th Gen, Intel Core i5 12th Gen, Intel Core i3 13th Gen, Intel Core i5 13th Gen, Intel Core i3 14th Gen, Intel Core i5 14th Gen

Omadused | Windows operating systems supported

Windows 10 x64, Windows 11 x64

Mälu | Memory channels

Kahekanaliline

Pakendi sisu | Kaasasolevad kaablid

SATA

Võrk | Ethernet LAN

Jah

Kaal ja mõõtmed | Sügavus

221 mm

Võrk | Wi-Fi

Ei

Mälu | Supported memory types

DDR5-SDRAM

Mälu | Memory slots type

SO-DIMM

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Võrk | Ethernet interface type

2.5 Gigabit Ethernet

Protsessor | Processor socket

LGA 1700

Sisemine I/O | TPM connector

Jah

Mälu | Number of memory slots

2

Sisemine I/O | RGB LED pin header

Jah

Sisemine I/O | ATX Power connector (24-pin)

Jah

Rear panel I/O ports | DisplayPort version

1.4

Storage controllers | Supported storage drive interfaces

SATA III, M.2

BIOS | BIOS type

UEFI AMI

Mälu | Maximum internal memory

128 GB

Võrk | LAN controller

Dragon RTL8125BG

Omadused | Audio chip

Realtek ALC897

Rear panel I/O ports | Ethernet LAN (RJ-45) portide arv

1

Sisemine I/O | Number of SATA III connectors

4

Laienduspesad | Number of M.2 (M) slots

1

Storage controllers | RAID support

Jah

Mälu | Supported memory clock speeds

7200

Omadused | Motherboard chipset family

Intel

Rear panel I/O ports | USB 2.0 ports quantity

2

Storage controllers | RAID levels

10, 5, 1, 0

Omadused | Audio output channels

7.1 channels

Sisemine I/O | Front panel audio connector

Jah

Rear panel I/O ports | DisplayPortide arv

1

Omadused | Motherboard form factor

micro ATX

Sisemine I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Mälu | Unbuffered memory

Jah

Omadused | Motherboard chipset

Intel B760

Laienduspesad | PCI Express x1 (Gen 3.x) slots

1

Sisemine I/O | CPU fan connector

Jah

Sisemine I/O | USB 2.0 connectors

2

Sisemine I/O | EPS power connector (8-pin)

Jah

Laienduspesad | PCI Express x16 (Gen 5.x) slots

1

Mälu | ECC сompatibility

Non-ECC
